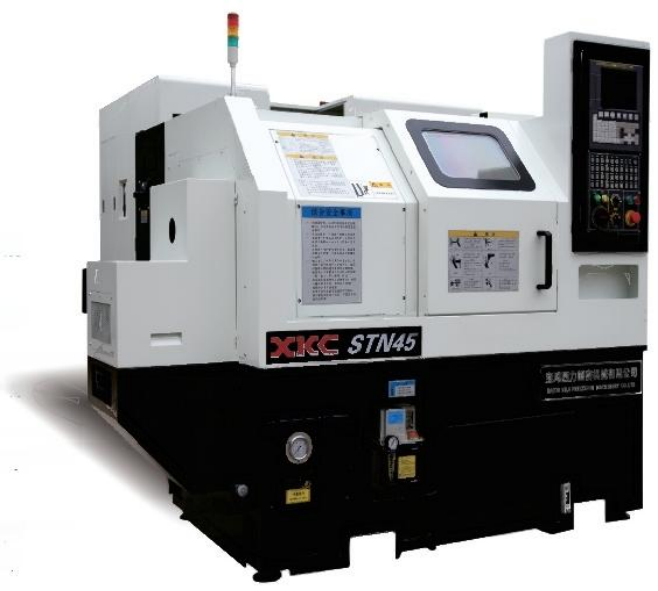

STN45/45M/45Y
平床身轉塔數控車床
FLAT BED TURRET CNC LATHE
平床身結構，刀架箱體和滑鞍一體化設計，結構緊湊，整體剛性足。
The flat-bed structure features an integrated design of the knife holder housing and sliding saddle, resulting in a compact construction with ample overall rigidity.
主軸采用高剛性主軸專用軸承，具有良好的剛性和精度，端跳、徑跳≤0.005,轉速高達5000r/min。
The spindle employs specialized high-rigidity bearings, offering excellent stiffness and precision with end runout and radial runout ≤0.005, and a maximum rotational speed of 5000 rpm.
STN45采用8工位伺服刀塔，赫氏三齒盤定位，油壓鎖緊，防水、防屑性能優良，分度、定位、鎖緊快速可靠。STN45M/Y采用12工位動力刀塔，可安裝BMT45刀座，實現多工序、復雜異性件的車削加工。
The STN45 features an 8-position servo tool turret with Hall-effect three-spoke positioning, hydraulic locking, and excellent waterproof and chip-resistant performance, ensuring rapid and reliable indexing, positioning, and locking. The STN45M/Y employs a 12-position power tool turret capable of mounting BMT45 tool holders, enabling turning operations on multi-process and complex irregular workpieces.
機床規格參數
MACHINE SPECIFICATION PARAMETERS
項目ITEM | STN45 | STN45M/Y | |
加工能力 Capacity | 最大的回轉直徑 Max. swing dia over bed | φ450mm | φ540mm |
最大加工直徑 Max process diameter | φ200mm | φ200mm | |
最大加工長度 Max process length | 260mm | 200mm | |
主軸通孔直徑Spindle through hole diameter | φ45mm | φ45mm | |
主軸 Spindle | 主電機功率(連續/30min) Spindle motor | 5.5/7.5KW | 5.5/7.5KW |
主軸端部形式 Spindle nose type | φ140mm | φ140mm | |
主軸最高轉速 Max spindle speed | 5000r/min | 5000r/min | |
卡盤尺寸 Chuck size | 6"(中空)(Hollow) | 6"(中空)(Hollow) | |
刀塔 Turret | 刀塔形式 Turret type | 伺服刀塔servo motor | 伺服動力刀塔 Servo powered turret |
刀位數 Number of stations | 8 | 12 | |
刀具尺寸 Tool size | 20×20/φ32mm | 20×20/φ32mm | |
尾座 Tail stock | 頂尖錐度 Center taper | MT4(選配Optional) | MT4(選配Optional) |
快移速度 Rapid feed | X/Z軸快進速度 Axis traverse | 20/24m/min | 20/24m/min |
冷卻 Cooling | 電機功率 Power | 370W | 370W |
冷卻箱容積 Cooling tank volume | 100L | 100L | |
其它 Others | 機床尺寸(長×寬×高) Floor Space | 2000×1550×1700mm | 2000×1650×1700mm |
機床重量 Mass of machine | 約About 2300kg | 約About 2400kg | |
